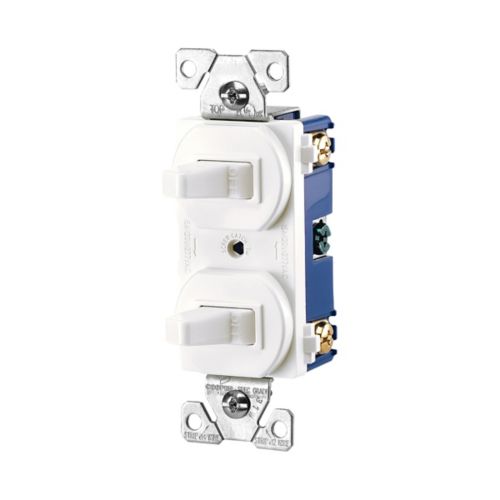

Eaton Commercial Grade Combination Switch 271W-BOX

Eaton

SKU: 367854

$11.99
Unit price per

Options

Eaton commercial grade combination switch, Stand, #14 - #12 AWG, 15A, Commer, 120/277V, bk and sd wiring, togg, Maint closure, Screw, Brass, wht, -20-60?C, (2) 1-pole, dplx, thermoplas

PRODUCT SPECIFICATIONS

Type	Standard
Amperage Rating	15A
Voltage rating	120/277 V
Number of poles	Single-pole
Configuration	(2) toggle
Application	Commercial
Device grade	Commercial
Wiring method	Back and side
Contact type	Brass
Switch type	(2) single-pole
Mounting method	Flush
Closure type	Maintained
Connector type	Screw
Material	Thermoplastic
Allowable wire size	#14-12 AWG
Operating temperature	-20 to 60 °C
Torque rating	14 lbf-inch
Style type	Duplex
Actuator	Toggle
Color	White
