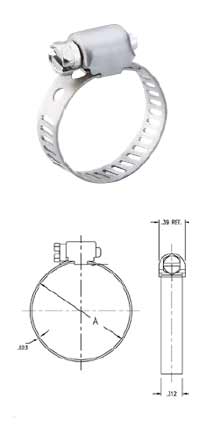

BREEZE MINI Clamp

Breeze Hose Clamps

SKU: 233379

$1.99
Unit price per

Options

A lightweight, streamlined clamp generally used in small diameter applications such as air & fuel lines. The streamlined configuration allows for installation in tight fitting or difficult to reach areas. This clamp creates high sealing pressure with only 10 to 15 in./lbs. of installation torque.

5/16" (7.9 mm) band
1/4" (6.4 mm) slotted hex head screw

Per SAE standard J1508 Type ”M”

EFFECTIVE DIAMETER RANGE					PART NUMBERS
SAE Size	Min.		Max.		Plated Hex Screw	410 SS Hex Screw	300 SS Hex Screw	All 316 SS
SAE Size	in.	mm.	in.	mm.	Plated Hex Screw	410 SS Hex Screw	300 SS Hex Screw	All 316 SS
4	7//32	5.6	5/8	16	3504	3604	3704	3804
6	7/16	11	25/32	20	3506	3606	3706	3806
8	1/2	13	29/32	23	3508	3608	3708	3808
10	9/16	14	1-1/16	27	3510	3610	3710	3810
12	11/16	17	1-1/4	32	3512	3612	3712
16	15/16	24	1-1/2	38	3516	3616	3716
20	1-3/16	30	1-3/4	44	3520	3620	3720
24	1-7/16	37	2	51	3524	3624	3724
28	1-11/16	43	2-1/4	57	3528	3628	3728
32	1-15/16	49	2-1/2	64	3532	3632	3732
